AceSmartCam

Intelligent camera

AceSmartCam is an intelligent camera (with the processor on board) designed and built by AceLabs, able to function without the aid of a PC (only necessary for the programming part). Features a dual core processor that integrates an ARM core (which runs a Linux operating system) and a DSP core (to which you can delegate more complex tasks from the computational point of view).

The presence of the Linux operating system allows maximum versatility and compatibility of the system with the traditional enterprise networks (network AceSmartCam is seen as a device any Linux/UNIX). The possibility to connect a standard PC keyboard and a monitor with a digital input provide maximum interaction with the system and the real-time visualization of the results of inspections.

This product is ideal for applications requiring a small footprint, low cost and a high level of customization.

also in: Italian

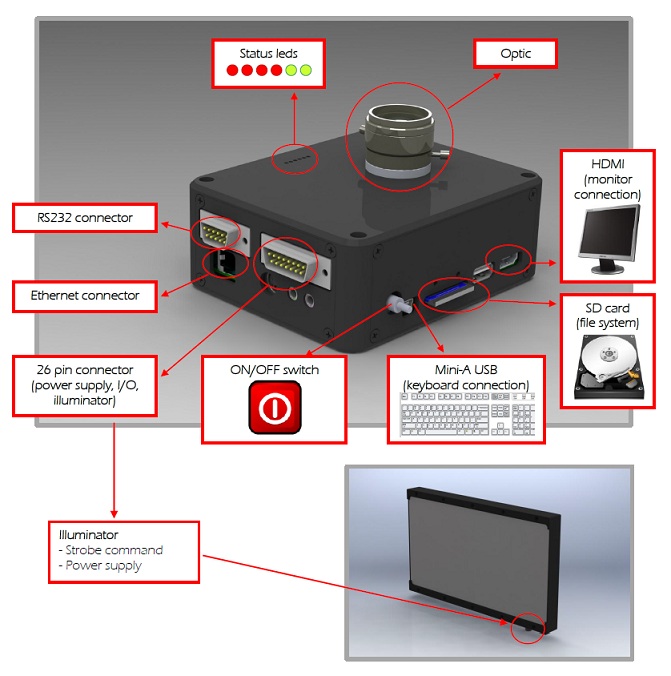

Technical specifications

  • Texas Instruments’ OMAP35x processor (ARM Cortex 600 MHz + DSP 412 MHz Texas Instrument);
  • 2.6.x embedded Linux operating system (file system on SD card);
  • greyscale CMOS sensor, 1280 x 1024 resolution;
  • optical connection for type “C”;
  • 4 opto-isolated input;
  • 5 opto-isolated output;
  • 1 output strobe for the command of a possible illuminator;
  • 1 ethernet port for connecting a standard PC keyboard;
  • 1 USB port (mini-A) for connecting a standard PC keyboard;
  • 1 HDMI port for connecting a monitor (video output: 1280×1024@60Hz);
  •  1 RS232 serial port;
  • 3 led output to be configured according to requirements.
